Tucson’s caliche layers and decomposed granite make trenching slower than in softer soils found farther north. Installers must locate existing irrigation lines and utility stubs before any excavation near 22nd Street or in the Wilmot and Broadway corridors. Proper slope on laterals prevents low-head drainage that wastes water during the short allowed watering hours set by the city.
Most homes built before 1995 in the Sam Hughes and El Encanto neighborhoods still run on old galvanized or thin-wall PVC that cracks under summer heat expansion. New installations use Schedule 40 pipe with swing joints at every head so thermal movement does not shear risers. Controllers are programmed to split run times into two shorter cycles, reducing runoff on the compacted lots common east of Swan Road.
Monsoon downpours can flood valve boxes if they sit in low spots. We raise boxes slightly and add gravel sumps so debris does not clog solenoids after heavy rain. Smart rain sensors tied to local weather stations keep systems off during the brief but intense storms that hit the Catalina foothills most July and August afternoons.
Backflow preventers must be installed above grade and tested annually to meet Pima County code. We place them near the meter so inspectors have clear access without walking through planted beds, a detail that speeds final approval on eastside properties.
Technician insight
In Tucson the thing that catches most people out with sprinkler system installation is hitting caliche two inches below the surface on older eastside lots; you either rent a jackhammer or hand-dig every foot, and the job time doubles if you do not check first.
Eastside lot with failing galvanized lines
Homeowner on 22nd Street near Kolb reported brown patches and constant leaks. We found old galvanized pipe cracked at every elbow. We replaced the entire manifold and ran new Schedule 40 zones around the existing mature mesquites, keeping the same valve locations so no new trenching crossed the driveway.
Sprinkler System Installation Services We Offer
✓Residential Sprinkler System Installation
Full lawn coverage designed around Tucson lot sizes, using pressure-regulated heads to match low city water pressure common on the east side.
✓Drip Irrigation Installation
Emitter lines and bubblers placed for desert trees and shrubs that need deep, infrequent watering without overspray onto sidewalks.
✓Smart Controller Upgrade
Wi-Fi controllers installed with local evapotranspiration data so run times adjust automatically during monsoon season and winter dormancy.
✓Valve Manifold Replacement
New valve boxes and anti-siphon valves added when old manifolds leak or fail to hold pressure after years in alkaline soil.
✓Sprinkler Head Layout and Zoning
Separate zones created for sun-baked south exposures versus shaded north sides so each area receives the right amount of water.
Sprinkler System Installation Cost in Arizona, Tucson
| Service | Typical Range | What Affects It |
|---|---|---|
| Basic front-yard system | $1,200–$1,900 | Single zone, small lot under 4,000 sq ft |
| Full front and back yard | $2,400–$3,800 | 3–5 zones, typical eastside lot |
| Drip conversion add-on | $450–$850 | Separate zone for beds and trees |
| Smart controller upgrade | $275–$475 | Includes Wi-Fi model and programming |
Ranges are typical for Arizona, Tucson and confirmed with an exact written quote before any work starts.
How it works
- 1
Site Visit And Soil Check
We walk the property, test water pressure at the meter, and probe for caliche so the design accounts for actual digging conditions.
- 2
Custom Layout And Zoning
A scaled plan shows head placement, valve locations, and separate zones matched to sun, shade, and plant water needs.
- 3

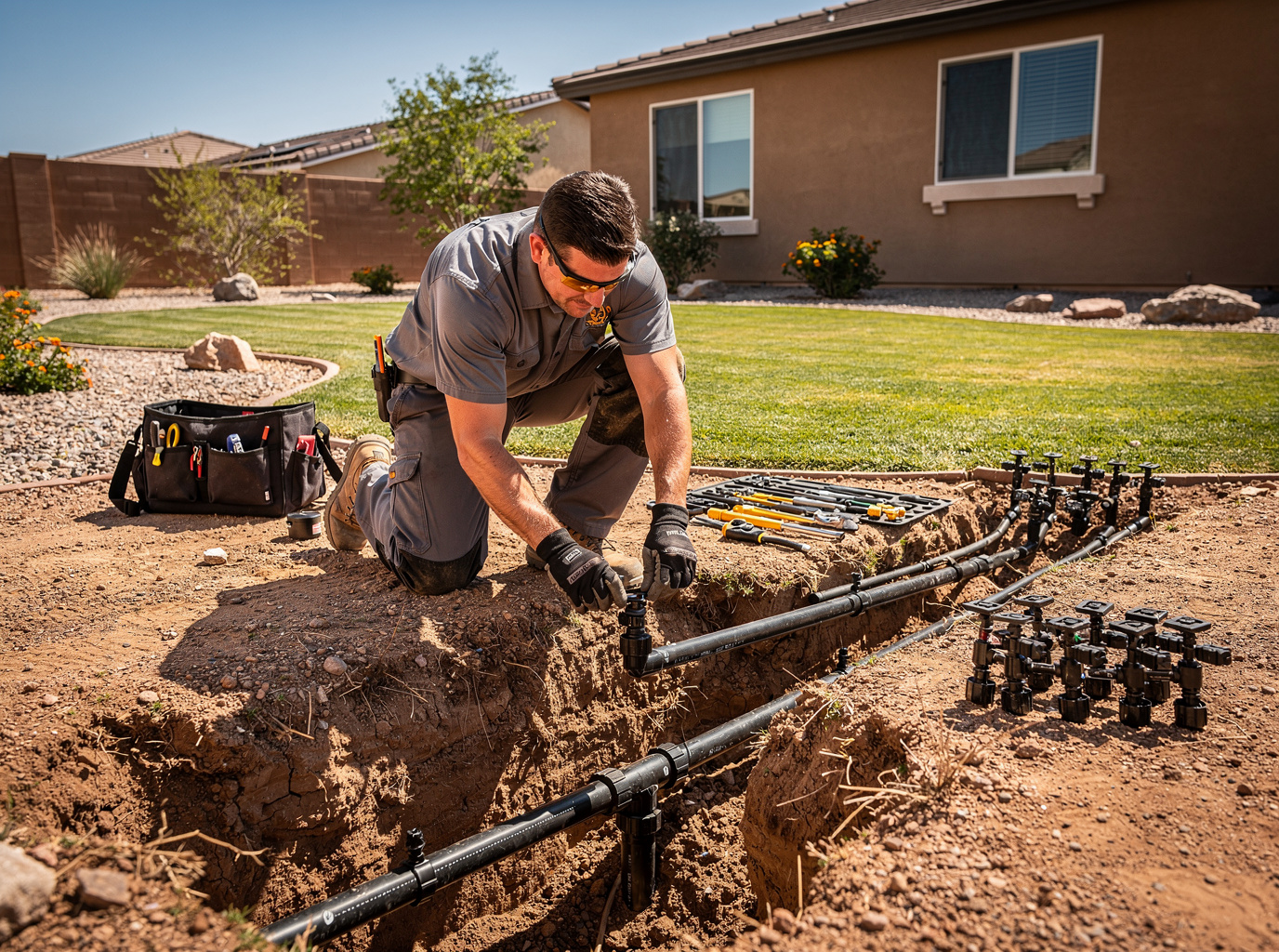

Trenching And Pipe Installation
Schedule 40 PVC is laid with proper slope and swing joints; trenches are backfilled and compacted to prevent settling after monsoon rains.
- 4
Testing And Final Adjustments
Every zone is run, heads are adjusted for even coverage, and the backflow preventer is tested before the system is turned over.
Pricing
Most Tucson residential installs fall between $1,200 and $3,800 depending on yard size and number of zones.
